3d Full Automatic Wheel Balancer
Feature
1.The 17‘‘ colorized LCD display, friendly interface, simple operation;
2.Paste the weights location by the laser positioning, more accurate;
3.A variety of balance mode, for special rims;
4.SPLIT function;
5.OPT optimization function;
6.Intelligent automatic calibration function;
7.Fault diagnostic function, and prompt the display diagnosis;
8.Can be measured IVECO rims;
9.Automatic measuring rims width size.
Specification
| Motor power | 0.3kw |
| Power supply | 110V/230V, 1ph, 50/60hz |
| Rim diameter | 10”-25” |
| Rim width | 1”-17” |
| Max. wheel weight | 143lbs/65kg |
| Max. wheel diameter | 43”/1100mm |
| Max. wheel width | 21”/530mm |
| Balancing speed | ≤140rpm |
| Cycle time | 15s |
| Balancing precision | 0.05 oz/1g |
| Package size | 1520*1020*1450mm |

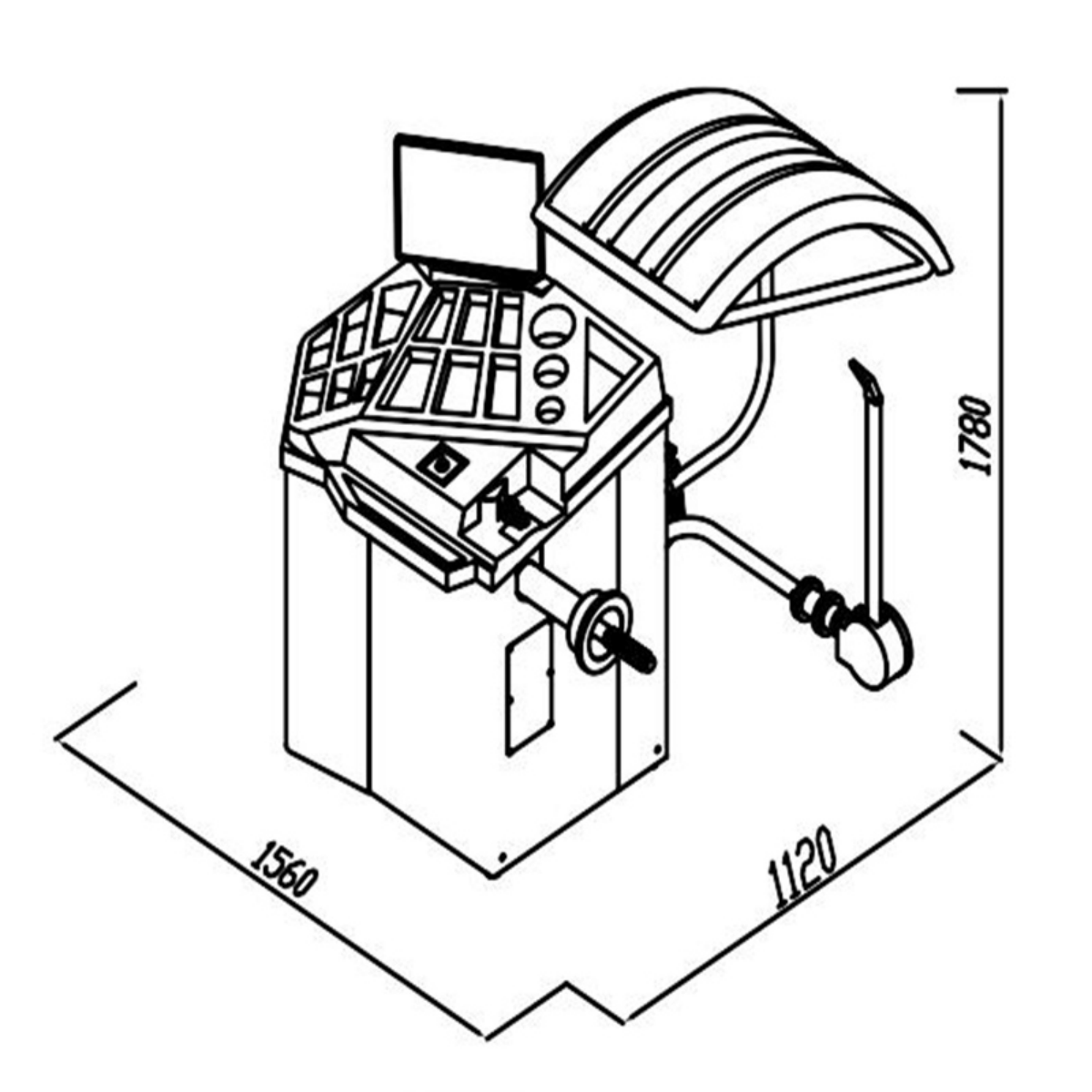

Drawing
Function of tire balancing machine
It is a machine to minimize the centrifugal force of the tire, reduce the abnormal wear of the tire, and make the tire run smoothly.
How to use: Adjust the numbers on the machine according to the tire model. For example, the tire is 185/60 R14, 185 is the width of the tire. The first button on the left of the balancer should be adjusted according to the width. 60 is the aspect ratio of the tire. The button in the middle can be used to measure the clamp, and can also be adjusted according to the tire model. 14 Rim diameter in inches. The button on the right can pull the ruler on the balancing machine to determine the distance from the rim of the tire. Various types of balancing machines may be different, and the specific operation should be performed according to the instruction manual.
