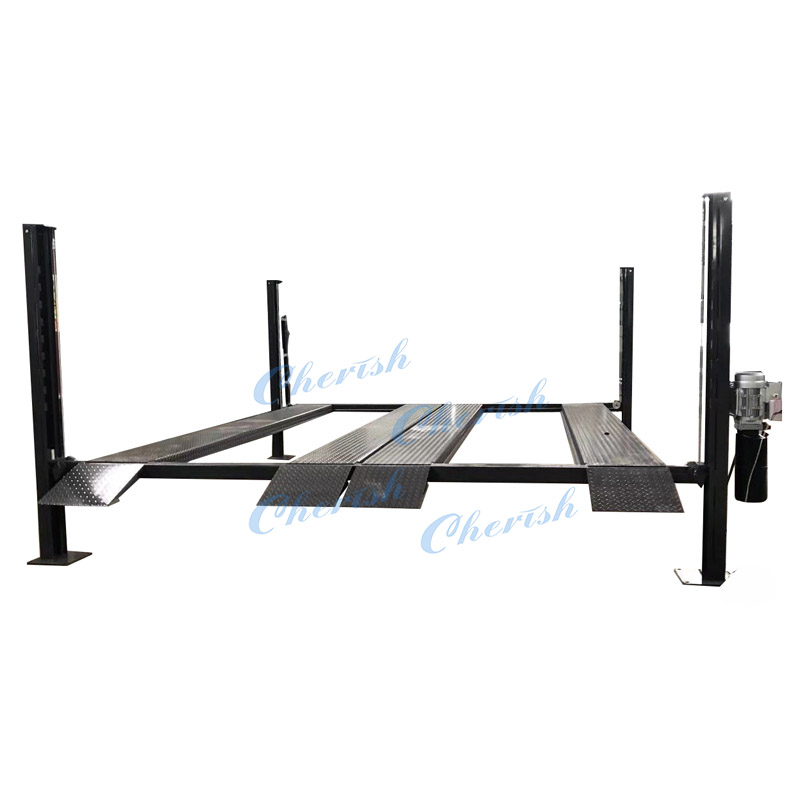

4 Cars Four Post Car Parking Lift
Feature
1.Double-wide design for 4 vehicles
2.Customized according to layout, Space & cost saving due to its compact design.
3.Double safety locks: first are one piece adjustable safety lock ladder and the other will be activated automatically in case of steel wire rupture.
4.Runways accommodate wide or narrow vehicles
5.4000kg overall lifting capacity
6.Multi-position safety locks in each column
7.Hidden single hydraulic cylinder
8.Increased sheave diameter reduces cable fatigue
9.Mechanical anti-falling locks allow multiple stopping heights
10.Customizable power unit location
11.Position of control panel is adjustable
12.Protective device against loosening and breaking of steel rope
13.Surface treatment: powder coating
Specification
|
Product Parameters |
|
|
Model No. |
CHFL2+2 |
|
Lifting Capacity |
4000 kg |
|
Lifting Height |
1800/2100 mm |
|
Width between Runways |
3820mm |
|
Lock Device |
Dynamic |
|
Lock release |
Electric auto release or manual |
|
Drive Mode |
Hydraulic Driven + Cable |
|
Power Supply / Motor Capacity |
110V / 220V / 380V, 50Hz / 60Hz, 1Ph / 3Ph, 2.2Kw 60/90s |
|
Parking Space |
4 |
|
Safety Device |
Anti-falling Device |
|
Operation Mode |
Key switch |
Drawing
Why Choose US
1.Professional car parking lift Manufacturer, More than 10 years experience. We are committed to manufacturing, innovating, customizing and installing various car parking equipment.
2.16000+ parking experience, 100+ countries and regions.
3.Product Features: Using high quality raw material to ensure the quality
4.Good Quality: TUV, CE certified. Strictly inspecting every procedure. Professional QC team to ensure the quality.
5.Service: Professional technical support during pre-sale and after sale customized service.
6.Factory: It located in Qingdao, east coast of China, Transportation is very convenient. Daily capacity 500 sets.
