Hydraulic Underground Scissor Parking Platform Car Hoist

Short Description:

An underground scissor parking lift with 2 platforms is a type of parking lift system that utilizes a scissor mechanism to raise and lower vehicles into a below-ground parking space. This system consists of two horizontal platforms (one for each car) that move vertically using the scissor lift mechanism, creating a space-efficient way to park multiple vehicles within the same footprint.


Product Detail

Product Tags

Feature

1. Maximizes Parking Space: Allows for the efficient use of both vertical and horizontal space, effectively doubling the parking capacity in a small footprint.
2. Space Saving: The underground installation means no disruption to the above-ground space, which can be used for other purposes like landscaping or pedestrian access.
3. Aesthetic: Since the lift is hidden underground, it maintains the appearance of the area without visible mechanical systems, which is especially desirable in high-end residential or commercial areas.
4. Efficient and Safe: The scissor lift mechanism is stable, reliable, and can safely handle the weight of multiple vehicles.

4
scissor lift with 2 platforms (2)
89.1

Specification

Product Parameters

Model No. CSL-3
Lifting Capacity 2500 kg per layer platform
Lifting Height 2600 mm
Self Closed Height 670 mm
Vertical Speed 4-6 M/Min
External Dimension 5300 x 2700 x 3280 mm
Drive Mode 2 Ea Hydraulic Cylinders
Vehicle Size 5000 x 2100 x 2000 mm
Parking Mode 1 on the ground, 1 underground
Parking Space 2 cars
Rise/Drop Time 70 s / 60 s
Power Supply / Motor Capacity 380V, 50Hz, 3Ph, 5.5Kw

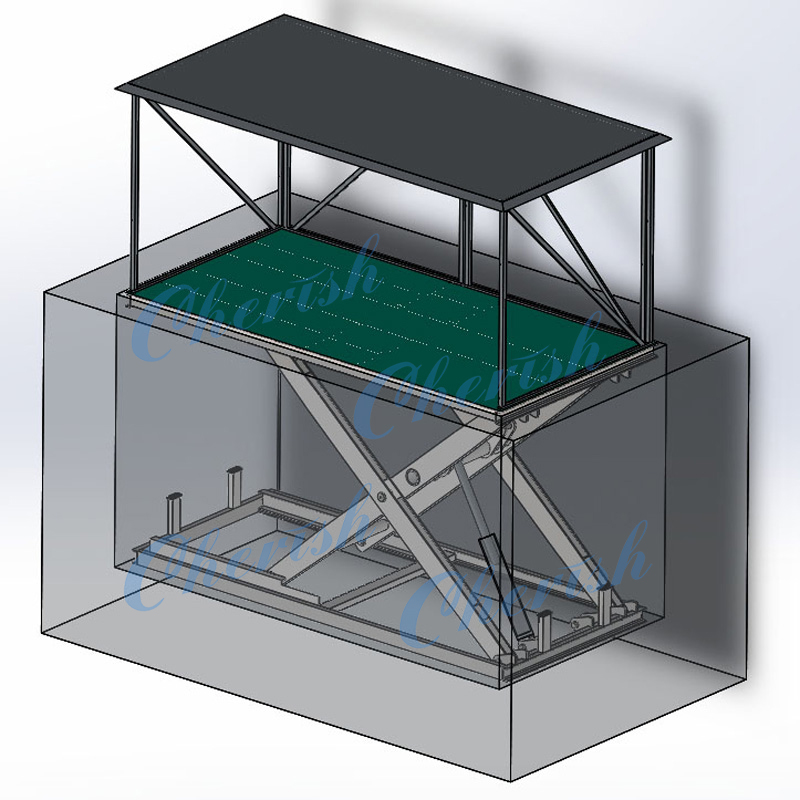

Drawing

avab

Why choose us

1. Professional car parking lift Manufacturer, More than 10 years experience. We are committed to manufacturing, innovating, customizing and installing various car parking equipment.

2. 16000+ parking experience, 100+ countries and regions.

3. Product Features: Using high quality raw material to ensure the quality

4. Good Quality: TUV, CE certified. Strictly inspecting every procedure. Professional QC team to ensure the quality.

5. Service: Professional technical support during pre-sale and after sale customized service.

6. Factory: It located in Qingdao, east coast of China, Transportation is very convenient. Daily capacity 500 sets.
