Semi Automatic Vehicle Wheel Balancer
Feature
1.Measurement of distance；
2.Self calibration; LED digital display
3.Unbalance optimization function;
4.Optional adaptor for motorcycle wheel balance;
5.Measurements in inches or millimeters, readout in gram or oz;
Specification
| Motor power | 0.25kw/0.35kw |
| Power supply | 110V/240V/240V, 1ph, 50/60hz |
| Rim diameter | 254-615mm/10”-24” |
| Rim width | 40-510mm”/1.5”-20” |
| Max. wheel weight | 65kg |
| Max. wheel diameter | 37”/940mm |
| Balancing precision | ±1g |
| Balancing speed | 200rpm |
| Noise level | ＜70dB |
| Weight | 134kg |
| Package size | 980*750*1120mm |

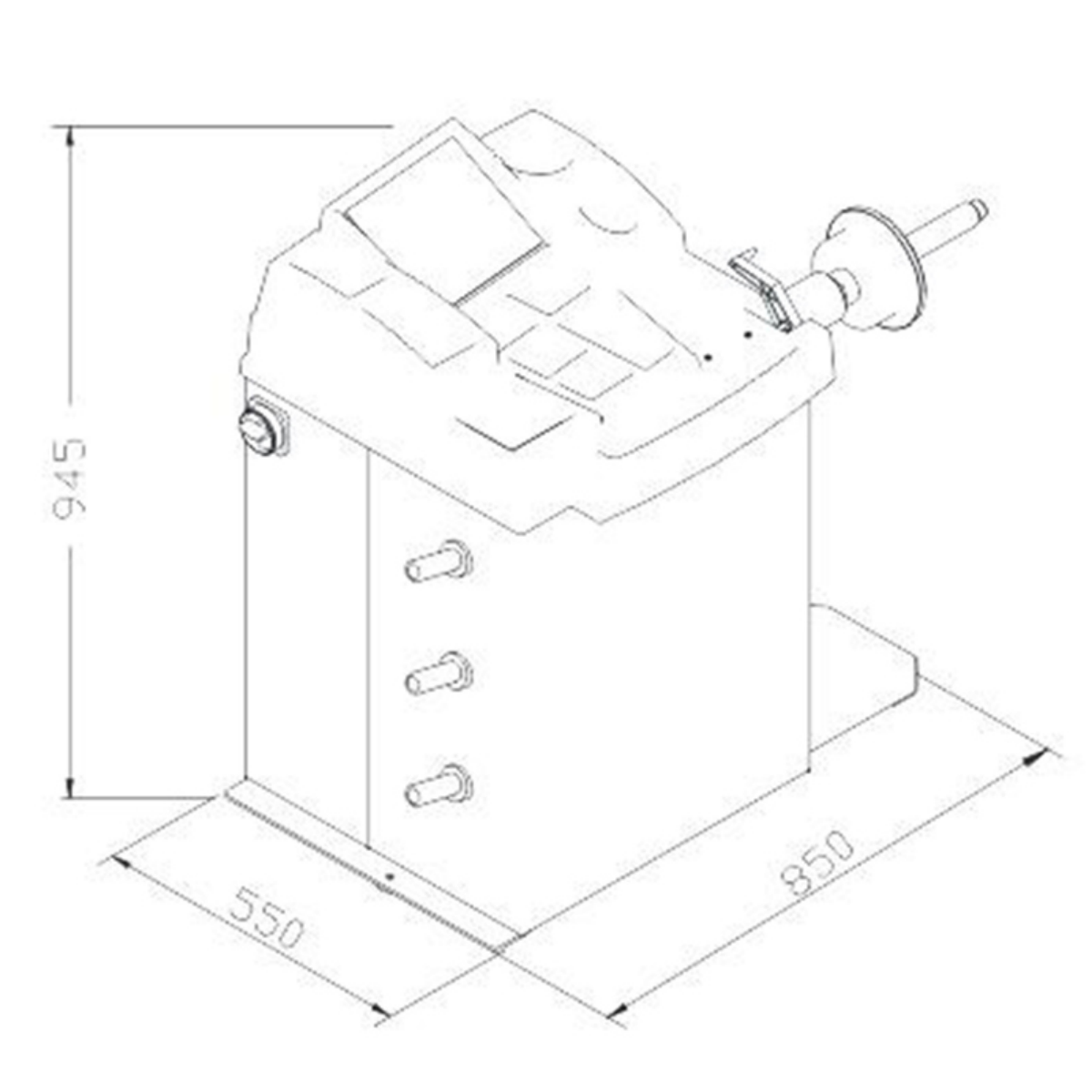

Drawing
When is wheel balancing required?
As long as the tire and rim are assembled together, a set of dynamic balance adjustments is required. Whether it is for replacing the rim or replacing the old tire with a new one, even if nothing is changed, the tire is removed from the rim for inspection. As long as the rim and tire are reassembled separately, dynamic balancing is required.
In addition to changing the rims and tires, you should also pay more attention at ordinary times. If you find that the steering wheel shakes, you should first check whether the dynamic balance is abnormal. In addition, factors such as rim deformation, tire repair, installation of tire pressure monitoring module, and replacement of valves of different materials will affect the dynamic balance. It is recommended to do a set of dynamic balance to ensure the normal use of the wheel.
